Quick Answer
An IP rating has two digits defined by IEC 60529: the first is protection against solids and dust (0–6), the second is protection against water (0–9K). For LED displays, IP54 means dust-protected and splash-resistant — suitable for covered outdoor areas. IP65 means dust-tight and protected against water jets — the realistic minimum for a permanently exposed outdoor screen. IP65 is not automatically better than IP54; it is better only where water is actually directed at the cabinet.
Key Takeaways
- Read the two digits separately. The first is dust, the second is water. Most specification errors come from checking only the second number.
- IP65 is the practical floor for exposed outdoor screens. Below that, water finds its way in through cable entries and seams long before the display's rated life ends.
- A higher IP number is not automatically better. Heavier sealing traps heat, and heat is the dominant cause of LED and power-supply failure. The right rating matches the exposure, not the marketing.
- IP is only one of four environmental ratings. Impact (IK), corrosion (salt spray), UV and operating temperature all affect outdoor survival independently.
- The seal is only as good as its weakest entry point. Cable glands, breathers and access doors fail before the cabinet body does.
What Does an IP Rating Actually Mean?
IP stands for Ingress Protection, and the system is defined by IEC 60529, the international standard for enclosure sealing. The code is written as two digits, and each is tested independently.
The first digit: solids and dust
The first digit runs from 0 to 6 and describes protection against solid objects, from a human hand at level 0 to complete dust tightness at level 6. The distinction that matters commercially is between level 5 and level 6, because the wording is easy to misread. IP5X means dust protected: dust may enter, but not in a quantity sufficient to interfere with operation. IP6X means dust tight: no dust enters at all.
For an LED display, this distinction is not academic. Dust that settles on driver ICs and power supplies acts as an insulating blanket, trapping heat exactly where the components are most thermally stressed. In a coastal or construction-adjacent environment, the difference between IP5X and IP6X is the difference between a display that accumulates internal contamination over years and one that does not.
The second digit: water
The second digit runs from 0 to 9K and describes water exposure, from no protection at level 0 to high-pressure, high-temperature jet washing at level 9K. The levels are cumulative in severity but not in kind — each describes a specific test condition rather than a general "more waterproof" scale.
| Second digit | Test condition | Practical meaning |
|---|---|---|
| 0 | No protection | Indoor, dry, controlled only |
| 1 | Dripping water, vertical | Condensation only |
| 2 | Dripping water, enclosure tilted 15° | Light indoor humidity |
| 3 | Spraying water at 60° from vertical | Rain with wind, sheltered position |
| 4 | Splashing water from any direction | Covered outdoor, splashes only |
| 5 | Water jets at 6.3 mm nozzle, 12.5 L/min | Exposed outdoor, driven rain |
| 6 | Powerful water jets at 12.5 mm nozzle, 100 L/min | Harsh weather, washdown |
| 7 | Temporary immersion, 1 m for 30 minutes | Flood-prone or low-mounted positions |
| 8 | Continuous immersion, manufacturer-specified depth | Submersion applications |
Where the IK rating fits
IP covers water and dust; it says nothing about impact. That is a separate standard, IEC 62262, which rates resistance to mechanical impact on a scale from IK00 to IK10. A street-level outdoor display faces both problems at once, and a supplier quoting IP65 while ignoring IK is answering only half the question. For public-realm installations, IK08 or better is a reasonable floor.
What Is the Difference Between IP54 and IP65?
This is the comparison most buyers actually face, and the difference is larger than the two numbers suggest. IP54 is dust protected with splash resistance; IP65 is dust tight with jet resistance. Both digits move up one level at once.
| Property | IP54 | IP65 |
|---|---|---|
| Dust | Protected — limited ingress, no interference | Tight — no ingress |
| Water | Splashes from any direction | Low-pressure jets from any direction |
| Driving rain | Marginal — depends on wind angle | Yes |
| Hose cleaning | Not recommended | Acceptable at low pressure |
| Sealing approach | Gaskets on main seams | Gaskets plus sealed cable entries and pressure equalisation |
| Thermal cost | Lower — more ventilation possible | Higher — heat must be managed without open vents |
| Typical installation | Covered walkway, canopy, indoor atrium | Exposed façade, roadside, rooftop, unshaded courtyard |
| Typical price premium | Baseline | +8% to +20% for equivalent screen area |
The decision rule is simple: if rain can reach the display at an angle, specify IP65. A canopy that stops vertical rain but not wind-driven rain does not justify IP54 — the water arrives horizontally, which is precisely what the jet test at IP65 simulates and the splash test at IP54 only partly covers.
A second consideration is often missed: IP54 cabinets can be ventilated, which lets heat escape by convection. IP65 cabinets cannot rely on open vents, so they must either seal and conduct heat through the enclosure or use filtered, pressure-equalised breathers. That is why the IP65 premium is not purely gasket cost — it includes the thermal engineering needed to keep a sealed box cool.
Which IP Rating Does Your Installation Need?
Match the rating to the mounting position rather than to the product category. The same display model is often offered in more than one enclosure, and the position determines which one is correct.
| Mounting position | Minimum IP | Additional requirement |
|---|---|---|
| Indoor, climate controlled | IP20 – IP40 | Ventilation for heat removal |
| Indoor, humid or kitchen-adjacent | IP54 | Corrosion-resistant fixings |
| Covered outdoor, no wind-driven rain | IP54 | Drip loop on cable entry |
| Exposed outdoor, vertical façade | IP65 | IK08 impact rating, UV-stable front |
| Exposed outdoor, coastal | IP65 – IP66 | Salt-spray tested finish (ASTM B117) |
| Street level, public reach | IP65 | IK08 – IK10, tamper-resistant fixings |
| Low-mounted, flood-prone | IP67 | Drainage planning, raised mounting |
Indoor installations
Indoor displays — including the LED poster displays used in retail and venue entrances — rarely need more than IP40, and specifying IP65 indoors is usually a mistake: the sealed enclosure traps heat, the power supplies run hotter, and service access becomes slower for no benefit. The exception is humid environments — commercial kitchens, pool areas, laundries — where IP54 with corrosion-resistant hardware is justified.
Exposed outdoor installations

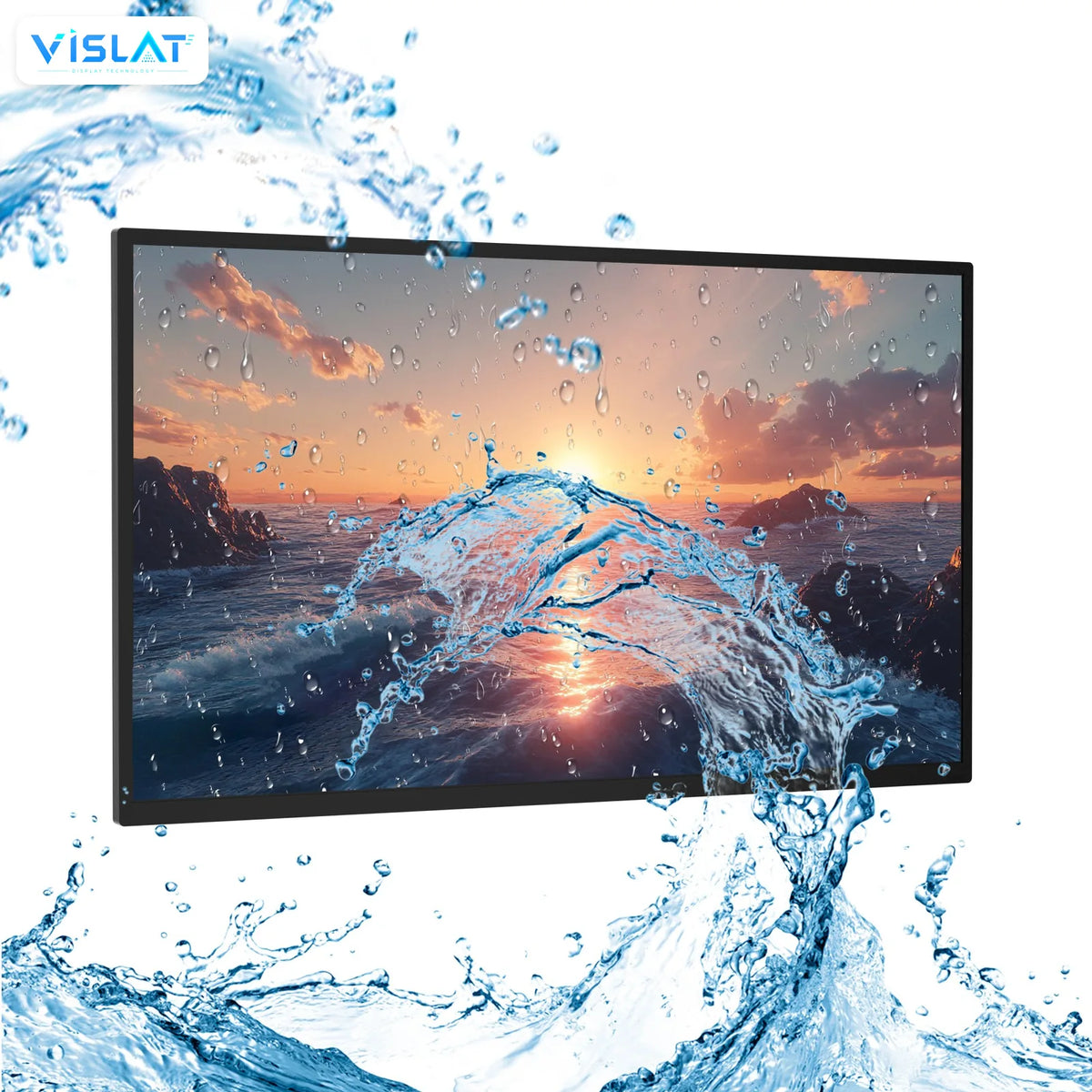

IP65 is the working standard for permanently exposed screens. Our outdoor TV range is built to this specification because it is the level at which driving rain, hose cleaning and dust loading are all addressed together. Coastal sites should go further and confirm salt-spray testing, since IP says nothing about corrosion.
Public-realm and street-level installations
Where the public can reach the display, water and dust are the lesser risks. Impact dominates, and the specification should combine IP65 with IK08 or better. This is also the case where the mounting hardware, not the cabinet, is the usual failure point — specify tamper-resistant fixings with the display rather than afterwards.
Does a Higher IP Rating Always Mean Better?
No, and the assumption causes real failures. IP rating measures sealing; it does not measure thermal performance, optical quality or serviceability, and the three are in direct tension with sealing.
The heat penalty
Heat is the dominant cause of premature failure in LED displays, and it comes from three sources: the LEDs, the driver ICs and the power supplies. A sealed enclosure removes the cheapest cooling path — open convection — so the designer must compensate with larger heatsinks, derated power supplies or active cooling. Where a manufacturer simply seals an existing cabinet without redesigning the thermal path, the higher IP rating shortens life rather than extending it.
The service penalty
Every gasket, sealed gland and captive fastener adds time to a repair. On a permanent installation that is a minor cost; on equipment that travels or sits in a public venue, it compounds. IP67 and IP68 cabinets in particular are rarely the right answer for anything that needs routine module access.
The cost penalty
Sealing adds manufacturing cost that buys no visible benefit beyond the exposure it addresses. Paying for IP66 on a display under a two-metre canopy is money that would have produced more value in pixel pitch, brightness headroom or spare parts — which is why portable display signage intended for sheltered positions is commonly specified at IP54 rather than sealed to an outdoor rating.
The correct framing is fit-for-purpose: specify the rating that matches the exposure, then spend the remaining budget on image quality and reliability rather than on unnecessary sealing.
How Do Manufacturers Inflate IP Claims?
IP ratings are self-declared in most markets — there is no mandatory central certification — so the number on a spec sheet reflects what the supplier claims, not necessarily what an independent laboratory tested. Four practices are common enough to check for.
Quoting the front face only
A cabinet can have an IP65 front module and an unsealed rear. If the rear is accessible — on a freestanding unit, a double-sided totem or a rear-service wall — the effective rating of the installation is the lower figure. Ask which surfaces were tested, not just for a single number.
Testing a sample, not a production unit
A hand-built prototype can pass a jet test that a production cabinet with different gasket compression does not. Ask whether the test report covers a production unit and whether the report identifies the model and date.
Omitting the test standard
A claim of "IP65" without reference to IEC 60529 is weaker than one that cites it, because the digits are only meaningful against the defined test conditions. The same applies to impact: IK ratings should cite IEC 62262.
Ignoring cable entries
The most common real-world ingress path is the cable gland, not the cabinet seam. A cabinet that passed a jet test with sealed test ports can still leak through an inadequately specified gland at installation. Confirm the gland rating matches the cabinet rating and that the installer uses the specified hardware.
A practical verification sequence: request the test report and check that it names the model; confirm which surfaces were tested; confirm the gland and breather specifications; and inspect a delivered unit for gasket continuity around the full perimeter, including corners and door hinges.
What Else Protects an Outdoor Display Besides IP?
IP is necessary but not sufficient. Four further factors determine whether an outdoor display survives its rated life, and each is specified separately.
| Factor | Standard or measure | Why it matters outdoors |
|---|---|---|
| Impact resistance | IK rating, IEC 62262 | Vandalism, hail, street-level contact |
| Corrosion resistance | Salt spray test, ASTM B117 | Coastal air and de-icing salt attack fixings and frames |
| UV stability | Material and coating specification | Front masks and cable insulation degrade in sunlight |
| Operating temperature | Rated ambient range | Sealed cabinets run hotter than ambient; derating is required |
Impact resistance
IK08 corresponds to a 5 kg impact at 1.7 m and is a sensible floor for anything the public can reach. Above head height, IK06 or IK07 is often adequate. Specify it explicitly, because a supplier focused on IP may not raise the question.
Corrosion resistance
Coastal installations fail at fasteners and welds before they fail at the display. Salt-spray testing to ASTM B117 gives a comparable measure, and stainless fixings with a properly coated frame matter more than a marginally higher IP digit.
Thermal derating
A sealed cabinet in direct sun can run well above ambient air temperature. Brightness and power supply load should be derated accordingly, and the installation should allow air movement around the enclosure even though the enclosure itself is sealed. Mounting a sealed display tight against a wall in full sun is a reliable way to shorten its life.
How Do You Maintain an IP-Rated Display?
The seal degrades. Gaskets compress and harden, glands loosen, and access doors are opened for service. A maintenance routine preserves the rating that was paid for.
- Inspect gaskets annually. Look for compression set, cracking and gaps at corners. A gasket that has lost its rebound no longer seals, even if it looks intact.
- Re-torque door fasteners to specification. Hand-tight is not a specification; uneven torque distorts the door and opens a path at one corner.
- Check cable glands after any service visit. Glands are the most common ingress point and the most commonly left loose.
- Clean according to the rating. An IP65 unit tolerates low-pressure hosing; an IP54 unit does not. Using the wrong method destroys the seal it was meant to protect.
- Inspect breathers and filters where fitted. Pressure-equalisation breathers clog, and a clogged breather turns a sealed cabinet into one that pulls moisture in through every weak point as it cools.
For multi-site installations, record the inspection date per unit. The failure pattern is highly predictable — coastal and street-level units need attention first — and a simple register turns maintenance from reactive to scheduled.
Frequently Asked Questions
Is IP65 waterproof?
No. IP65 is dust-tight and protected against low-pressure water jets, which covers driving rain and light washdown but not immersion. A display rated IP65 should not be submerged, and it should not be cleaned with a high-pressure washer. If standing water is a realistic risk at the mounting position, IP67 is the relevant rating rather than IP65.
Can I use an IP54 display outdoors?
Only where it is genuinely sheltered — under a canopy or in a recess where rain cannot reach it at an angle. In practice most "covered" positions still receive wind-driven rain, which is what the IP65 jet test simulates. If you cannot guarantee the display stays dry during a storm, specify IP65. The price difference is far smaller than replacing a water-damaged screen.
What is the difference between IP65 and IP66?
Both are dust-tight; the difference is water volume and pressure. IP65 is tested with a 6.3 mm nozzle at 12.5 litres per minute, while IP66 uses a 12.5 mm nozzle at 100 litres per minute. IP66 therefore suits locations exposed to heavy, forceful water — coastal storm exposure or equipment that is washed down — while IP65 covers ordinary driving rain.
Does a higher IP rating reduce brightness?
Not directly, but it can reduce sustained brightness in practice. A sealed cabinet dissipates heat less effectively, so the display may need to be derated to stay within component temperature limits. In direct sun, a well-designed IP65 unit with adequate heatsinking will hold its rating; a poorly designed one will thermally throttle or fail early regardless of the IP number on the label.
How do I verify an IP rating claim?
Ask for the IEC 60529 test report and check three things: that it names the exact model, that it covers a production unit rather than a prototype, and that it states which surfaces were tested. Then confirm the cable glands and breathers carry an equivalent rating, because those are the real ingress paths. A supplier who cannot produce a report for the specific model is offering a claim, not a rating.
Do indoor LED displays need an IP rating at all?
They need a basic one. IP20 protects against finger contact and is adequate in a dry, climate-controlled room, but dust still accumulates on cooling surfaces and shortens component life. IP40 or IP5X is a reasonable specification for indoor commercial displays in normal environments. The exceptions are humid spaces such as kitchens and pool areas, where IP54 with corrosion-resistant hardware is the appropriate minimum.
