Quick Answer
LED displays now serve five mainstream commercial applications: retail and brand messaging, hospitality and venue atmosphere, corporate and institutional communication, event and rental staging, and outdoor advertising. The right display for each is decided less by image quality than by three practical factors — the closest viewing distance, the ambient light level, and how the screen is serviced. Choose those three correctly and the technology selection follows almost automatically.
Key Takeaways
- Application determines pitch, brightness and service access — not the other way around. Start from the installation, not the spec sheet.
- Retail and window displays need brightness first, because they compete with daylight; corporate and meeting-room screens need fine pitch, because viewers sit close.
- Event and rental work rewards repairability over refinement. Panels that one person can carry and swap outrank marginally sharper images.
- Outdoor advertising is a different discipline. Above 5,000 nits and IP65 the economics and engineering diverge sharply from indoor products.
- Plan service access before the mounting method. A screen nobody can reach is the single most expensive mistake across all five categories.
What Are the Main Applications for LED Displays in 2026?
Across the projects we see from North American and European buyers, five categories account for the large majority of commercial installations. Each has settled into a characteristic set of specifications, because thousands of installs have already established what works.

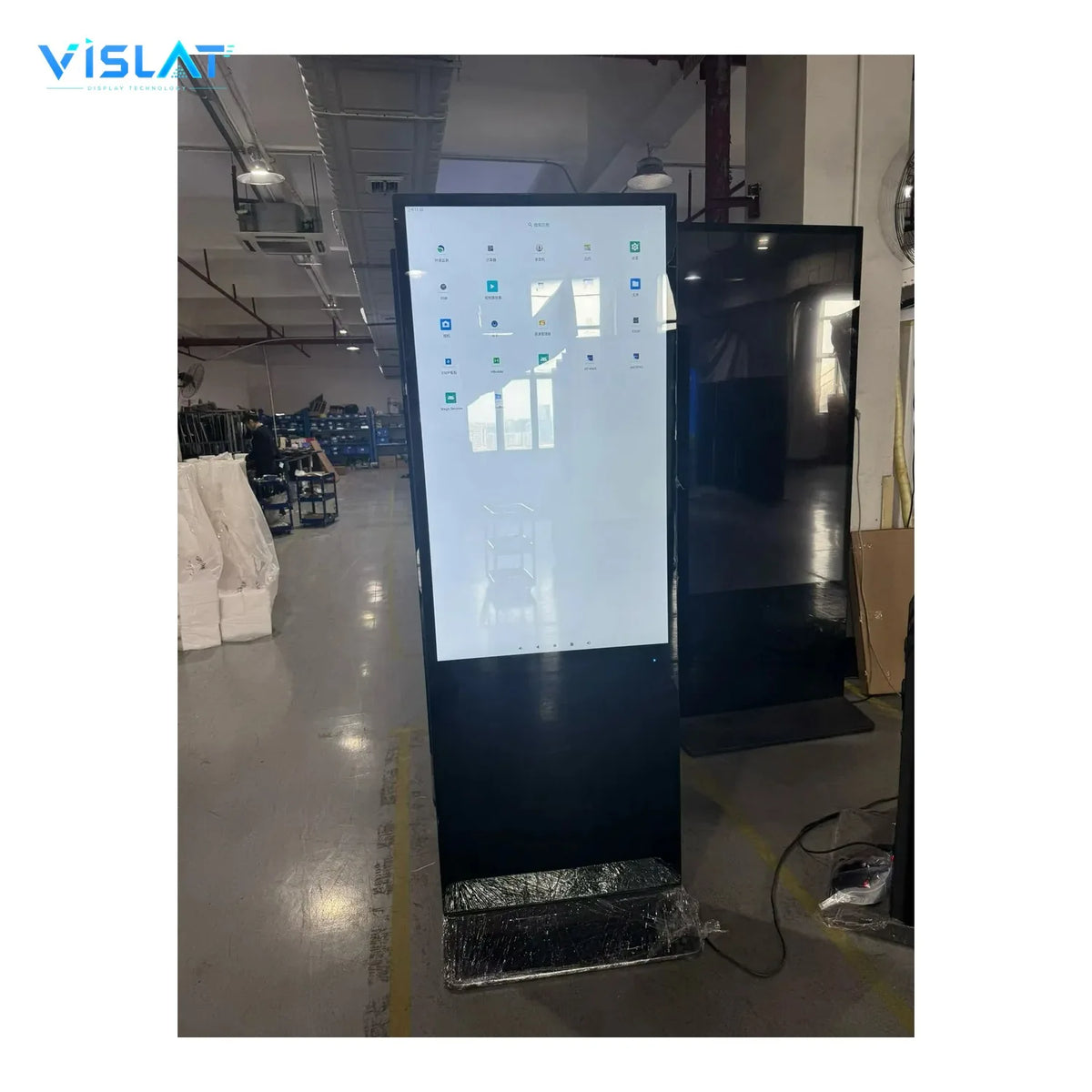

Retail, brand and window messaging
Retail is the fastest-growing category and the most demanding on brightness. A screen facing a shop window competes with daylight for the viewer's attention, which is why 1,500–2,500 nits is common even for indoor-facing panels. Content is typically short, high-contrast and changed frequently, so the display must support scheduled playlists without manual intervention. LED poster displays dominate this niche because they fit in the footprint of a printed poster while allowing content to be updated by the hour. See the current range in our LED poster display collection.
Hospitality, nightlife and venue atmosphere
Bars, clubs, restaurants and hotels use displays to build atmosphere rather than to communicate information. The requirement inverts: instead of legibility at distance, the goal is immersive visual impact synchronised to music, which pushes toward large seamless surfaces, high refresh rates for camera capture, and content that changes with the room's energy. LED DJ booths and curved video walls are the typical products. Browse LED DJ booths for the club-focused range.
Corporate, institutional and wayfinding communication
Corporate lobbies, meeting rooms, control rooms, hospitals and transport hubs need screens that are read rather than watched. Viewers sit or stand within two to four metres, often reading text, dashboards or schedules, so fine pitch (P1.8–P2.5) and accurate greyscale matter more than raw brightness. Content is often generated by internal systems, so integration with scheduling and content management platforms is a first-order requirement rather than an afterthought. Our digital signage range covers 32" to 98" formats for these environments.
Events, rental and staging
Event production values transportability and repairability above all else. Panels are handled dozens of times a year, shipped in road cases and assembled by crews working to a schedule. The working range settles at P2.6–P4.81 with 3,840 Hz refresh, because the screen will be filmed and because finer pitch panels are more expensive to replace when a rig is damaged. See LED rental panels for the modular range.
Outdoor advertising and public information
Outdoor is effectively a separate industry. Brightness rises to 5,000–8,000 nits, the enclosure must meet IP65 or better, and the structure must handle wind loading and thermal cycling. Viewing distances are long, so pitch is coarse (P6–P10) and the money goes into brightness, power and weatherproofing instead. Our outdoor display range spans IP54 to IP65 for patios, terraces and semi-exposed locations.
Which Display Type Fits Each Application?
The table below maps the five categories onto the specifications that actually differ between them. Use it as a starting point, then confirm against your own closest viewing distance.
| Application | Typical pitch | Brightness | IP rating | Service priority |
|---|---|---|---|---|
| Retail window / brand | P1.86 – P3.91 | 1,500 – 2,500 nits | IP40 – IP54 | Front access, frequent content change |
| Hospitality / nightlife | P2.6 – P4.81 | 800 – 1,500 nits | IP40 | Module swap without rigging |
| Corporate / wayfinding | P1.8 – P2.5 | 500 – 800 nits | IP40 | Front access, low noise |
| Event / rental | P2.6 – P4.81 | 1,000 – 5,000 nits | IP40 – IP65 | Single-person module replacement |
| Outdoor advertising | P6 – P10 | 5,000 – 8,000 nits | IP65 – IP68 | Rear or front, structural access |
Two columns deserve emphasis. Service priority is the specification buyers most often omit from the brief, and it is the one that determines lifetime cost. A screen recessed into a wall with rear-only access turns a ten-minute module swap into a structural job. IP rating is frequently over-specified indoors and under-specified outdoors; the correct question is not "is this a wet area" but "can wind-driven rain or condensation reach the electronics".
What Does an LED Display Cost by Application?
Budget expectations differ enormously between categories because the engineering differs. The ranges below reflect factory-direct pricing for the product types typically specified in each application.
| Application | Typical entry point | Mid-range project | What drives the upper end |
|---|---|---|---|
| Retail poster / window | $1,299 | $1,800 – $2,300 | Double-sided, battery power, high brightness |
| Hospitality / nightlife | $1,599 | $2,500 – $5,500 | Panel count, curvature, rigging hardware |
| Corporate / wayfinding | $399 | $1,100 – $3,000 | Screen size, fine pitch, touch integration |
| Event / rental | $429 per panel | $6,000 – $40,000 per rig | Total panel count, flight cases, control system |
| Outdoor advertising | $899 | $2,900 – $7,000 | Screen area, brightness, structure and permits |
Two cost traps recur across categories. The first is structure and installation, which adds 20–40% to a fixed outdoor installation and is frequently omitted from the initial budget. The second is spares: receiving cards, power supplies and one spare module per screen should be purchased with the original order, because matching a driver IC two years later is materially harder and more expensive than including it on the first shipment.
How Do You Measure ROI for a Commercial Display Installation?
ROI looks different in each category, and using the wrong measure is why some projects are judged failures despite working perfectly.
Retail: content cost displacement and dwell time
For retail the cleanest comparison is against what the screen replaces — printed posters, window vinyl and the labour to change them. A poster screen that replaces twelve print cycles a year typically repays a meaningful share of its cost within two years on materials and labour alone. Any uplift in dwell time or footfall conversion is additional. Measure both, but do not require the screen to justify itself on conversion alone.
Hospitality: atmosphere and repeat visits
In venues, displays contribute to the reason people stay longer and return. Direct attribution is difficult and usually not worth attempting. The practical approach is to compare against the alternative spend on temporary décor and event-specific production, and to treat the screen as a multi-year asset that replaces recurring one-off costs.
Corporate: meeting efficiency and wayfinding accuracy
Corporate installations justify themselves through reduced meeting friction, fewer printed updates and fewer wayfinding queries at reception. These are real but soft benefits; the harder justification is usually the avoided cost of repeated AV rental for internal events.
Events: utilisation rate
For rental inventory the governing metric is utilisation — the number of days per year the panels are earning. A rig that works 60 days a year at typical regional rental rates recovers its capital cost well inside two years. Anything below roughly 30 days a year makes sub-renting more economical than owning, and that threshold should be tested before purchase rather than after.
Outdoor: advertising yield against site cost
Outdoor installations are usually justified on advertising yield against site rent, power and maintenance. The variable that most often breaks the model is power: a large screen driven at full brightness around the clock costs several times what the same screen costs with a scheduled dimming profile. Program this from day one.
What Should You Plan Before Installation?
Six items determine whether a project runs smoothly. All of them are cheaper to resolve on paper than on site.
- Closest viewing distance. Measure to the nearest point a person can physically stand, not to the back of the room. This single number drives pitch selection more than any other input.
- Ambient light across the day. Log the light level at the screen's position at morning, midday and evening. A position that is comfortable at 9am may be unreadable at 4pm.
- Service access route. Decide how a module will be replaced and confirm the mounting method supports it. Front-service cabinets solve most difficult locations.
- Power and data runs. Confirm the available supply, whether a dedicated circuit is needed, and how signal reaches the screen. Retrofitting conduit after the structure is built is expensive.
- Content ownership. Decide who creates and schedules content before installation, not after. A screen with no content plan underperforms within weeks.
- Structural load and wind. For outdoor and large indoor installations, confirm the mounting surface can carry the cabinet load plus dynamic wind loading, and that flatness tolerance matches the cabinet design.
Frequently Asked Questions
Which LED display application has the highest return?
It depends on your business rather than on the technology. Retail poster displays typically show the fastest payback because they displace recurring print costs and require no structural work. Event rental can produce the highest absolute return but only above roughly 30 utilisation days a year. Outdoor advertising has the highest capital requirement and the longest payback, with power and site costs dominating the model.
Can one display serve several applications?
Rarely well. A screen optimised for close-range corporate viewing is too dim and too expensive for outdoor advertising; a rental panel optimised for transport has coarser pitch than a boardroom needs. Where budgets force a compromise, the portable display category exists precisely for that middle ground — a rolling or battery-powered unit that can move between retail, reception and event use. See our portable display signage range.
Is LED or LCD better for commercial signage?
LCD wins on pixel density per dollar at very small sizes and close viewing distances, and is simpler to install below roughly 65 inches. LED wins on seamless imaging, brightness, unlimited scale and module-level repairability. Above about 4 metres of viewing distance, or wherever a visible bezel grid would be unacceptable, LED is the practical choice.
How long does a commercial LED installation take?
Factory lead time is typically 7–15 working days for stocked categories and 15–25 working days for custom cabinet sizes. Add sea freight of 25–40 days to Europe or North America, or 5–8 days by air. On site, a wall-mounted panel is a half-day job for two people, while a modular video wall typically takes one to three days dominated by structure alignment and calibration rather than panel mounting.
What is the most common mistake in commercial LED projects?
Over-specifying pixel pitch and under-specifying service access. Buyers focus on sharpness they cannot perceive at the actual viewing distance, then discover the screen is recessed with no rear access, turning a routine module swap into a structural operation. Decide how the screen will be serviced before you decide how fine it is.
Do I need different content for each application?
Yes, and this is routinely underestimated. Retail content is short and high-contrast, tuned for a few seconds of attention. Venue content is long-form and rhythm-driven, designed to be absorbed rather than read. Corporate content is information-dense and changes on a schedule. Reusing one content style across categories is the fastest way to make an expensive screen look ineffective.
