Quick Answer
Setting up a foldable LED DJ booth takes about 15 to 30 minutes for one person, from opening the flight case to a lit screen. The sequence is: unpack and stand the case, lift the folded panels onto the frame, unfold and lock each panel into position, connect power and data between panels, plug the controller into your laptop, then map the screen canvas in the control software. The two steps that catch people out on a first gig are locking every hinge before power-up and confirming the screen mapping matches your actual panel count.
Key Takeaways
- Always lock the hinges before powering up. Unlocked panels can shift and damage driver connectors.
- Test the full chain at home, not at the venue. Confirm laptop output, controller settings and panel count before your first paid event.
- Carry one spare data cable and one spare power link. A single bad cable is the most common on-site failure.
- Set the canvas to the real panel count, or content will stretch across the wrong number of panels.
- Pack in reverse order. The last thing you connect should be the first thing you disconnect.
What Comes in the Box?
A typical foldable booth kit contains five groups of items. Confirm each against the packing list on arrival, before the unit goes into storage — missing parts are far easier to resolve immediately than three weeks later.
- Panel assembly: the LED panels, already joined by hinges into a folding concertina structure for multi-panel models, or supplied as individual 500 × 500 mm panels for modular configurations.
- Frame and feet: the support structure with base feet or castors, plus any cross-bracing for taller configurations. See the full range in our LED DJ booth collection.
- Power chain: daisy-chain power links between panels, plus the mains lead and connector for the first panel or the controller.
- Data chain: Cat5e or Cat6 signal cables between panels, plus the cable from the controller to the first panel in the chain.
- Control hardware: a sending card, control box or video processor, depending on how the booth is specified, plus any receiver cards already fitted in the panels.
Also in the case, though not a component: the test report or factory ageing record and the wiring diagram. Keep the wiring diagram with the kit — it resolves most on-site confusion about which panel is first in the chain, and it is the first thing you will want if a panel behaves unexpectedly.
How Do You Set Up an LED DJ Booth?
The sequence below assumes a foldable three-panel booth and one person. Larger configurations take longer and benefit from two people for the lift, but the order is the same.
Step 1: position the case and check the ground
Open the flight case where the booth will stand, or as close to it as access allows. Check the surface is level — a booth assembled on a slope will lean, and the base feet on most models have limited adjustment. If the floor is uneven, use the adjustable feet first and only then consider shimming.
Step 2: lift the panels onto the frame

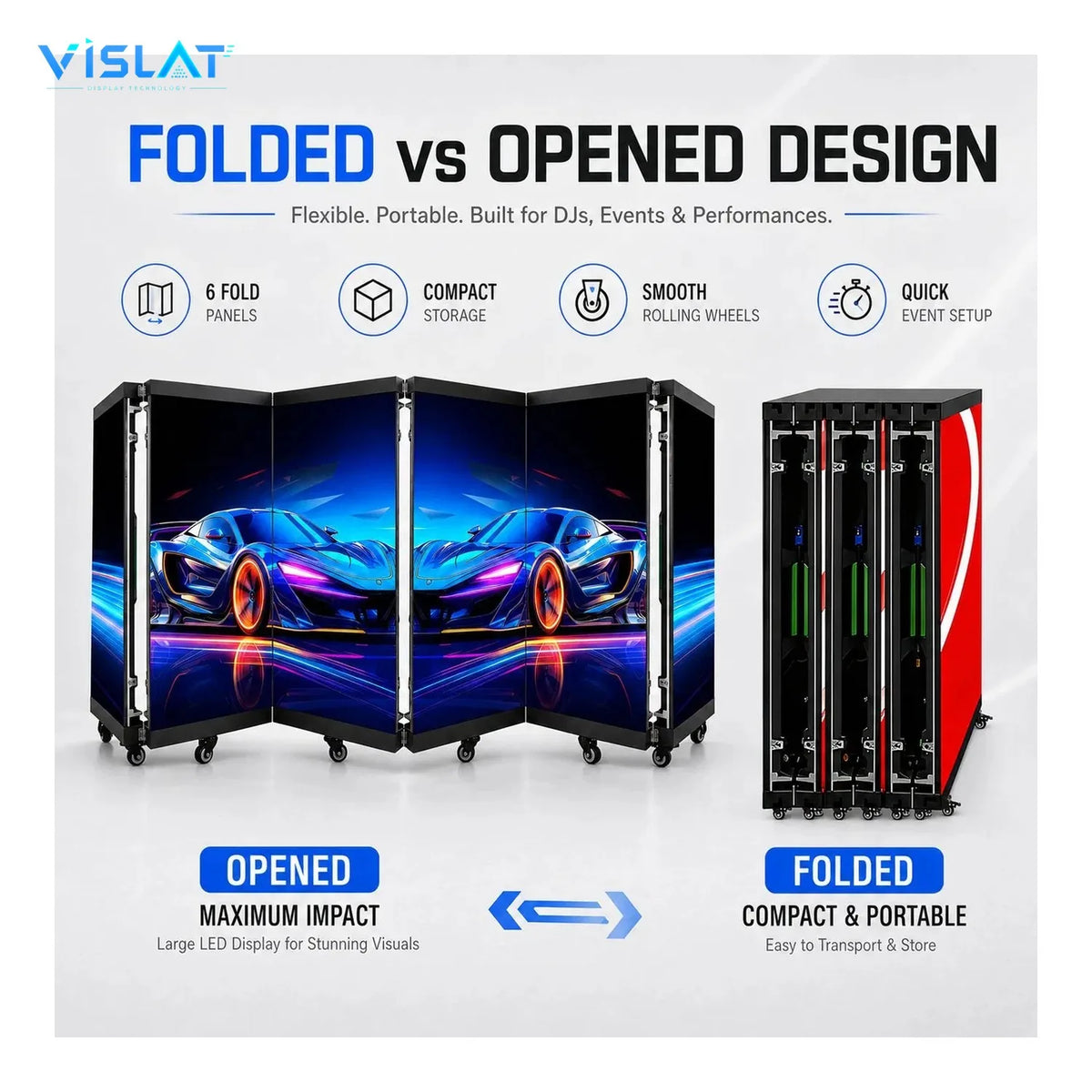

With the panels still folded, lift the assembly onto the support frame and seat it into the mounting points. This is the one step where a second person genuinely helps, particularly on six-panel units, because the folded pack is awkward rather than heavy. Do not unfold anything yet.
Step 3: unfold one panel at a time and lock each hinge
Unfold the assembly progressively, working outward from the centre. After each panel reaches its operating position, engage the hinge lock. This is the step that people rush, and it is the one that causes damage: an unlocked panel can swing while powered, stressing the data connector between modules. Run your hand along every hinge and confirm each is seated before moving on.
Step 4: seat the base and check alignment
Once fully unfolded, confirm the base is flat on the floor and the panels are vertical and in line. Look along the top edge of the assembly — any visible stagger here will be obvious to an audience under stage lighting. Adjust the feet rather than forcing the panels.
Step 5: connect power
Daisy-chain the power links between panels, then connect mains to the first panel or to the controller as your configuration requires. Leave the mains switched off at the wall until the data chain is complete. Confirm the circuit can carry the full load — a six-panel booth can draw a meaningful amount, and daisy-chaining onto an already loaded venue circuit is a common cause of tripped breakers mid-set.
Step 6: connect data
Run the signal cables between panels following the direction marked on the cabinets — data flows in one direction through the chain. Connect the controller to the first panel, and the laptop to the controller. Route cables so they are not under the feet and cannot be pulled by a passing guest.
Step 7: power up and map the screen
Switch on, then open your control software and set the canvas to match the real panel count and arrangement. If the canvas is wrong, content will stretch or repeat across panels. Most control platforms provide standard presets for common booth configurations; using the preset and then verifying against what you see is faster than building the layout manually.
How Do You Configure the Display and Controller?
Configuration divides into three tasks, and doing them in this order avoids most confusion.
1. Set the canvas
Tell the software how many panels exist and how they are arranged. A three-panel booth is typically a single row; a five- or six-panel unit may wrap or curve. The canvas dimensions determine how your content maps, so this must match reality before anything else is adjusted.
2. Set brightness for the room
Club and stage environments rarely need full brightness. Setting the booth to somewhere around 40 to 60 percent of maximum is usually plenty under stage lighting, and it reduces heat and power draw on a long night. If the venue has strong front-of-house lighting or the booth will be filmed, raise it — but start lower than you think and adjust upward.
3. Confirm refresh rate and input
Check the refresh rate setting matches the specification (3,840 Hz for any booth that will be filmed) and that the input source is the one you expect. Many controllers default to an internal test pattern, which is a common cause of "the screen works but shows the wrong content" at the start of an event.
If your booth integrates with a lighting desk or timecode source, test that integration now rather than during the set. It is far easier to resolve addressing and protocol questions in an empty room. For event work where the booth will travel alongside other modular screens, the same panel-level knowledge applies across the rig — see our LED rental panel range for the modular cabinets used in larger setups.
How Long Does Setup Take?
Timings below assume one person with a rehearsed routine. A first attempt typically takes twice as long, which is why a dry run before a paid event is worth the effort.
| Task | First attempt | Rehearsed |
|---|---|---|
| Unpack and position the case | 5 min | 2 min |
| Lift panels onto the frame | 5 min | 2 min |
| Unfold and lock hinges | 10 min | 4 min |
| Connect power and data | 10 min | 4 min |
| Power up and map the canvas | 10 min | 3 min |
| Total | ~40 min | ~15 min |
The pack-down is faster than the setup — typically 8 to 12 minutes rehearsed — because the sequence is simply reversed and the panels are already in a known state. The common mistake is hurrying the fold: a panel folded with the hinge unlocked tends to travel badly and arrive damaged.
How Do You Pack Down and Transport Safely?
Four rules keep the kit working across dozens of events.
- Disconnect data before power. Working backwards from the setup order keeps the sequence predictable and avoids live connectors being pulled.
- Fold and lock in reverse order, working from the outer panels inward. Confirm every hinge is fully seated in the folded position before closing the case.
- Let the panels cool before packing. A booth run at high brightness for three hours is warm, and packing it hot traps that heat against the modules. Give it a few minutes with the case open.
- Cable discipline. Coil data and power cables to a consistent length and store them in the case's dedicated pockets. Cables are the first thing to fail and the hardest to troubleshoot when mixed with others.
Transport conditions matter as much as handling. A flight case protects against impact but not against moisture, so a case stored in a damp van or left outside overnight can deliver condensation directly onto module surfaces. If the kit will travel in an unconditioned vehicle, allow it to reach room temperature before powering up — the same principle as camera equipment moved between cold and warm environments. And keep transport kit separate from permanent-installation screens: panels intended for fixed mounting, such as those in our digital signage range, are not built for repeated handling and should travel only once, to their final location.
What Goes Wrong on First Gigs?
The failure modes below account for nearly all first-event problems, and each has a quick diagnosis.
| Symptom | Likely cause | Fix |
|---|---|---|
| One panel dark, others fine | Data or power link not seated | Reseat the cable into that panel; try a spare cable |
| Whole booth dark | Mains circuit overloaded or controller not outputting | Test the circuit; confirm controller input source |
| Content stretched or repeated | Canvas mapping does not match panel count | Correct the canvas dimensions in control software |
| Banding on phone video | Refresh rate too low | Raise to 3,840 Hz in controller settings |
| Screen shows a test pattern | Controller defaulting to internal source | Select the correct input |
| Colour uneven between panels | Calibration or brightness mismatch | Apply stored calibration; check all panels share settings |
| Flicker or intermittent dropout | Damaged data cable or loose connector | Replace the cable; check connector pins for damage |
Two of these deserve emphasis for first-time owners. Overloaded circuits cause failures that look like equipment faults but are venue power problems — bring a short heavy-duty extension and confirm the circuit capacity before the event. Test patterns are the most common "it's broken" call from a new owner, and the fix is a single setting.
Frequently Asked Questions
Can one person set up an LED DJ booth?
Yes for three- and four-panel foldable units — the folded pack is awkward rather than heavy, and the whole process takes about 15 to 30 minutes with practice. Six-panel and larger configurations are manageable alone but faster and safer with two people for the lift onto the frame. If you regularly work alone, choose a model with the frame integrated into the case.
Do I need a laptop at every gig?
For most configurations, yes — the laptop runs the control software that maps the canvas and feeds content. Some setups allow a media player or a standalone controller to be pre-loaded and carried in the case, which removes the laptop from the equation. That is worth configuring if you want to hand the booth to a venue or a third-party operator.
How do I stop the booth from being knocked over?
Three measures: use the base feet properly adjusted to the floor, add the cross-bracing or ballast the model provides, and position the booth where guests cannot reach it from the side. Where the booth sits at floor level in a busy venue, a wider base or a slightly larger panel count that lowers the centre of gravity is more stable than a tall, narrow configuration.
What spare parts should I carry to every event?
A minimum kit is one spare data cable, one spare power link cable and one spare receiver card if your panels use removable cards. These three items resolve the large majority of on-site failures and take up almost no space in the flight case. If your booth uses a separate controller, carry a spare mains lead for it as well — venue leads go missing routinely.
How do I clean LED panels between events?
Use a soft dry microfibre cloth on the module surface, and avoid liquid cleaners on SMD panels because fluid can migrate behind the lamps. For residue from smoke machines, a lightly dampened cloth with plain water and immediate drying is acceptable on coated surfaces. Never use compressed air at close range, which drives dust into the module gaps and degrades uniformity.
How long will a booth last with regular touring?
With proper packing and a rehearsed routine, a quality foldable booth handles years of regular use. The parts that wear first are cables and connectors rather than panels, which is why carrying spares matters more than carrying spare modules. After roughly two to three years of frequent touring, expect to replace the cable set even if every panel is still working.
