Quick Answer
Refresh rate is how many times per second an LED display completes a full on-off cycle for every pixel, measured in hertz. At 1,920 Hz the eye sees a perfect image but many cameras capture banding and flicker. At 3,840 Hz the display cycles 64 times per video frame at 60 fps, which is fast enough that a camera's shutter almost never catches pixels in their off state. For any screen that will be filmed, 3,840 Hz is the practical minimum.
Key Takeaways
- Refresh rate is a camera specification, not an eye specification. Almost nobody sees 1,920 Hz directly; almost everybody sees it on playback.
- 3,840 Hz gives 64 cycles per frame at 60 fps, which is the headroom that makes phone video clean.
- Refresh rate and greyscale depth compete. A display that quotes one without the other is not giving you a usable specification.
- Brightness affects perceived refresh. Low-brightness content needs more on-time resolution, so the same panel performs differently at different output levels.
- Higher refresh costs little at purchase and saves a great deal in credibility, because every guest is now a camera operator.
What Is Refresh Rate in an LED Display?
An LED does not glow continuously at a variable brightness. It is switched fully on or fully off, many times per second, and the apparent brightness comes from the proportion of time it spends on. This is pulse-width modulation, and refresh rate is how often the full cycle repeats.
The cycle, step by step
Within one refresh cycle, the driver loads data for every pixel, switches each channel on for a precisely determined duration, then switches it off and repeats. A 3,840 Hz display completes that sequence 3,840 times every second — roughly once every 260 microseconds.
To the eye, this is invisible. Human flicker perception tops out around 60 to 90 Hz for large fields, and well below that for small ones. This is precisely why refresh rate is misunderstood: the specification exists to satisfy cameras, not viewers.
Refresh rate versus frame rate
These are frequently confused. Frame rate is how often the video source delivers a new image — 24, 30 or 60 frames per second. Refresh rate is how often the panel redraws whatever image it holds. At 60 fps and 3,840 Hz, the panel redraws the same frame 64 times before the next one arrives, which is what allows a camera to sample a stable image rather than catching a transition.
Why Does 3,840 Hz Matter Specifically?
The number is not arbitrary. It comes from the arithmetic of camera shutters.
The shutter problem
A camera does not record continuously. It opens its shutter for a defined exposure period and integrates the light that arrives. If the display is mid-cycle during that window, the camera captures a fraction of the pixels in their off state, and the result is a dark band across the image.
Because the display and camera run on independent clocks, the band moves — rolling upward or downward through the frame. This is the flicker and banding that appears on phone video of LED screens but never in person.
The arithmetic
The relevant relationship is how many refresh cycles fit inside one camera exposure. At a typical outdoor shutter speed of 1/1000 second, a 1,920 Hz display completes fewer than two cycles during the exposure; a 3,840 Hz display completes nearly four. More cycles per exposure means the off-state fraction averages out rather than dominating one part of the frame.
At 60 fps video, 3,840 Hz also divides evenly into 64 cycles per frame. Even division matters because it means each frame is captured at the same point in the cycle, which eliminates the slow colour shift that appears when the two clocks beat against each other.
Where 1,920 Hz still works
At 1,920 Hz, many modern phone cameras produce acceptable results at typical shutter speeds, particularly in bright conditions where the shutter is fast. The problem appears with broadcast cameras, slow shutters, high frame-rate capture and low-light situations where the camera lengthens exposure. For a venue where crews film professionally, 1,920 Hz is a defect waiting to be discovered.
Refresh Rate, Frame Rate and Scan Rate: What Is the Difference?
Three different numbers get used interchangeably in sales conversations. They are not interchangeable.
| Term | What it describes | Typical value | Set by |
|---|---|---|---|
| Refresh rate | Full on-off cycles per second per pixel | 1,920 – 7,680 Hz | Driver IC and scan mode |
| Frame rate | New images delivered per second by the source | 24 – 120 fps | Media player or camera |
| Scan rate | Rows driven sequentially within each cycle | 1/8, 1/16, 1/32 | Module design |
Scan rate is the hidden variable. A 1/16 scan module activates 16 rows in sequence, so each row is lit only one-sixteenth of the time and must be driven at higher instantaneous current to compensate. A 1/32 scan doubles that. Because the driver must complete all rows within each refresh cycle, a higher scan number puts more timing pressure on the same chip — which is why two modules quoting "3,840 Hz" can behave very differently in practice.
What Refresh Rate Do You Need?
The answer depends on who is filming and with what.
| Application | Minimum refresh | Reason |
|---|---|---|
| Indoor advertising, no filming expected | 1,920 Hz | Adequate for the eye; occasional phone video acceptable |
| Retail and lobby displays | 1,920 – 3,840 Hz | Guests film; 3,840 Hz removes surprises |
| Live music and club stages | 3,840 Hz | Continuous filming by audience and crews |
| Corporate events and conferences | 3,840 Hz | Professional capture and livestream |
| Broadcast studios and virtual production | 7,680 Hz | Camera-matched timing, minimal moiré |
| Rental fleets | 3,840 Hz | Equipment may appear in any filming context |
The pattern is straightforward: once a screen may appear on camera in an uncontrolled way, 3,840 Hz becomes the baseline. Rental equipment always qualifies, because the rental company cannot know in advance how a client will film the event.

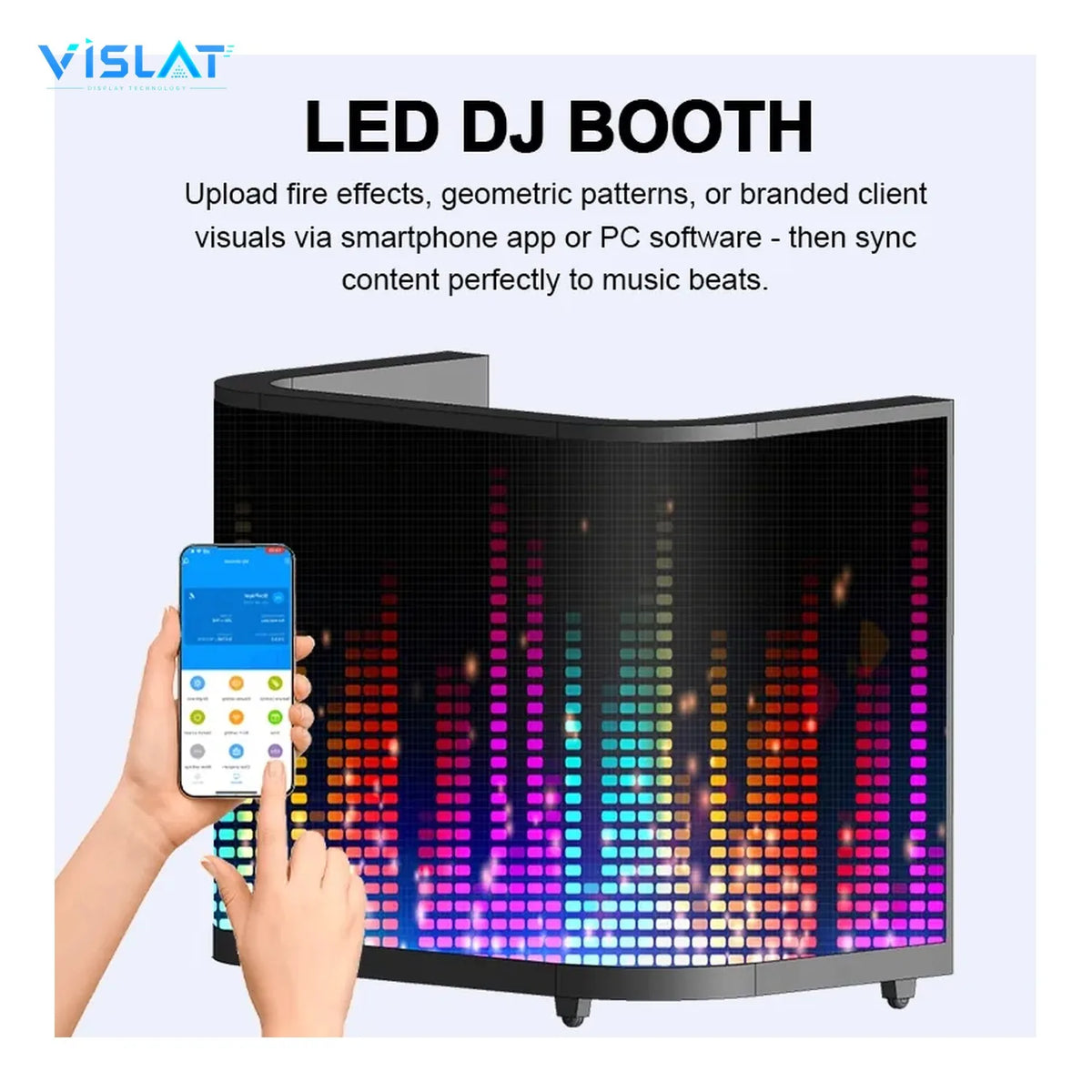

For stage and club installations our LED DJ booth range is specified at 3,840 Hz for exactly this reason, and the rental panel range is built to the same standard.
Why Do Two 3,840 Hz Displays Look Different on Camera?
Refresh rate is necessary but not sufficient. Three other factors change the outcome, and all three are commonly omitted from the specification sheet.
Greyscale depth at that refresh rate
Greyscale depth and refresh rate share the same timing budget. A driver can deliver very high refresh at low bit depth, or high bit depth at low refresh, but achieving both requires a faster chip. A display quoted "3,840 Hz" without a stated depth may be running at 10-bit when it reaches that figure — and 10-bit produces visible banding on slow fades regardless of refresh.
Brightness level
Pulse-width modulation has finite resolution: the shortest on-pulse the driver can produce is a fixed minimum. At low brightness, the required on-time approaches that minimum, so the number of usable steps shrinks. This is why some screens look clean at full brightness and band badly when dimmed for a dark room — a common issue in clubs and evening events.
Camera settings and content
A camera with a slow shutter, wide aperture and high ISO will expose the panel's limitations more readily than a phone in bright daylight. Content matters too: flat colour fields reveal banding that busy video content hides. If you are evaluating a display, test it with a flat grey field at the brightness you will actually use, filmed on the camera your client will actually use.
How Do You Verify a Refresh Rate Claim?
Refresh rate is easy to claim and harder to prove. Three checks separate a real figure from a brochure number.
- Film it. Use a phone at 4K 60 fps with a slow shutter (1/60 or slower) and a flat grey test pattern. Banding that appears here will appear in your client's footage.
- Ask for the depth. Request refresh rate and greyscale depth as a pair, at a stated brightness. A supplier who quotes only one is either unable or unwilling to state the other.
- Check at the brightness you will use. Repeat the film test at 30 per cent brightness, which is where dimmed club and evening content actually sits.
For a formal evaluation, a high-speed camera or a photodiode with an oscilloscope gives a direct measurement. Most buyers do not need that level of rigour, but the phone test catches the vast majority of exaggerated claims at no cost.
Does Higher Refresh Rate Cost More?
Modestly. The premium is in the driver IC, not in the LEDs or the cabinet, so the cost difference between 1,920 Hz and 3,840 Hz is typically a small percentage of the module price rather than a step change. The larger cost drivers remain pixel pitch, brightness and cabinet construction.
This is the strongest argument for specifying 3,840 Hz by default. The incremental cost at purchase is small, while the cost of a screen that bands on every guest's phone video is difficult to quantify but easy to observe — which is why most of our digital signage range ships at 3,840 Hz as standard — and it is paid every time the content is shared.
Frequently Asked Questions
Is 3,840 Hz refresh rate good?
Yes — it is the practical standard for any commercial display that will be filmed. At 60 fps it divides into 64 cycles per frame, which keeps camera capture stable, and it holds up under professional shutters and slower exposures. For broadcast and virtual production, 7,680 Hz is the relevant tier.
Can you see the difference between 1,920 Hz and 3,840 Hz?
Not with the naked eye in normal viewing. The difference appears on camera, which is where most commercial content ends up. If a display will never be filmed, 1,920 Hz is adequate; if it will be filmed by anyone, including guests, 3,840 Hz removes a recurring problem for a small price difference.
Does refresh rate affect brightness?
It affects the brightness that can be sustained at a given greyscale depth, because higher refresh compresses the available on-time per cycle. Well-designed modules compensate with higher instantaneous drive current, but that increases heat. This is why brightness, refresh and greyscale are specified together rather than independently.
What causes the dark lines rolling across my LED screen on video?
The camera is sampling the display mid-cycle. The display refreshes at one frequency and the camera at another, so the captured point in the cycle drifts, producing a rolling band. Raising refresh rate reduces the effect; matching the camera's shutter to a divisor of the refresh rate eliminates it entirely for a fixed camera setup.
Is 1,920 Hz enough for a nightclub?
Usually not. Nightclub content is filmed constantly by guests, often in low light with slow shutters — precisely the conditions that expose banding. The visual cost of a 1,920 Hz screen in a club is paid on social media every weekend, which makes the small premium for 3,840 Hz easy to justify.
What is the highest refresh rate available?
Commercial displays commonly reach 7,680 Hz, and higher figures appear in specialised broadcast and virtual production products. Above 3,840 Hz the returns diminish quickly for general commercial use, because the remaining artefacts are driven by camera settings and content rather than by the panel's refresh rate.
